Our contionuous PUR / PIR sandwich panel production line is already recognized its value by exporting to European country with CE and other major sandwich panel producing companies at domestic and foreign, DMMET, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.
APPLICATION of the PU-PIR PANEL PRODUCTION LINE
This production line is suitable for manufacturing socket type ( wall plate panel ) and lapped type ( roof tile panel ) pu sandwich panels.

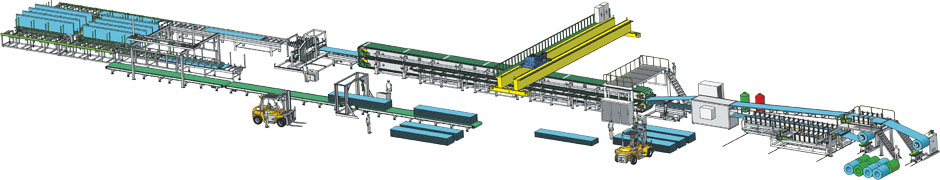

FLOW CHART
Uncoiler - Feeding Guide - Protective Film Coating - Roll Forming Machine - Rolling Conveyer - Steel Pre-Heating - Foaming Machine - Double Belt Pressing Machine - Rolling Conveyer - Auto Fly Cutting To Length - Runout Table - Auto Vacuum Stacker - Auto Packing Machine
MAIN TECHNICAL DATAS
| Production Type |
: Continuous and automatic production |
| Specification of Metarial |
: 0.3 - 0.8 mm |
| Width of Metarial |
: 1250 mm Max |
| Main Power |
: 240 kW |
| Total Power |
: 300 kW |
| Structure of Roll Forming Machine |
: Upper and lower pressing group producing with the pu complex mainframe |
| Forming System |
: Continuous and automatic foaming, foaming capacity can be stepless adjustable. |
| Foaming Thickness |
: 20 - 300 mm |
| Speed |
: 0 - 16 mm / min |
| Way of the Controlling |
: Siemens PLC Computerized controling |
| Total Weight |
: about160 Ton |
| Total Lenght |
: about 85 meter |
